Ashborne 3′ Picket Fence Master CAD
Material List – 3×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 72″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 72″ |
| Metal | 1 | 1.5″ x 3.25″ x 71.5″ |
| Pickets | 2 | 0.875″ x 1.5″ x 33.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 32.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 31.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 30.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 28.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 28.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27.625″ |
| Pickets | 1 | 0.875″ x 1.5″ x 327.375″ |
| Picket Caps | 13 | 0.875″ x 1.5″ |

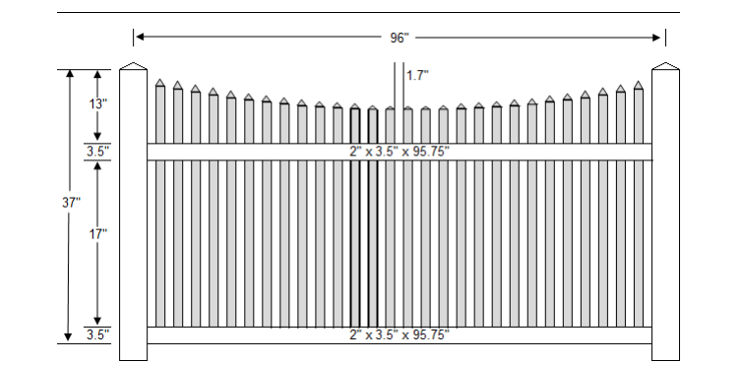

Material List – 3×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 95.75″ |
| Bottom Rail | 1 | 2″ x 3.5″ 95.75″ |
| Metal | 1 | 1.5″ x 3.25″ x 95.5″ |
| Pickets | 2 | 0.875″ x 1.5″ x 33.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 32.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 31.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 30.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 28.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 28.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27.125″ |
| Pickets | 2 | 0.875″ x 1.5″ x 27″ |
| Pickets | 2 | 0.875″ x 1.5″ x 26.875″ |
| Picket Caps | 28 | 0.875″ x 1.5″ |

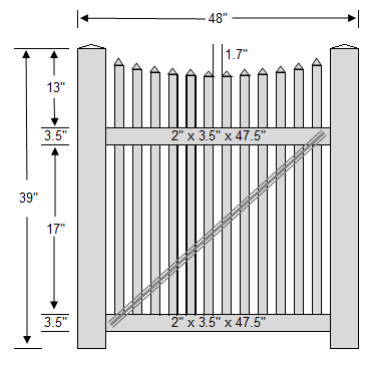

Material List – 3’x 48″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 39″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 47″ |
| Pickets | 2 | 0.875″ x 1.5″ x 33.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 32.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 31.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 30.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.25″ |
| Picket Caps | 12 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

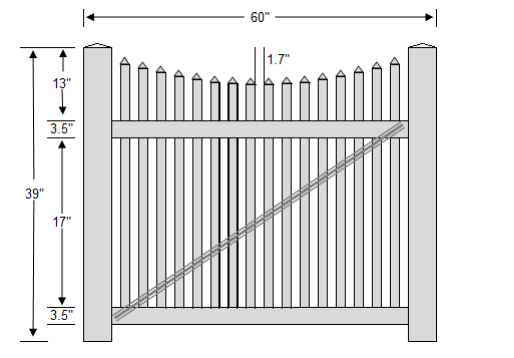

Material List – 3’x 60″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 39″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 59″ |
| Pickets | 2 | 0.875″ x 1.5″ x 33.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 32.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 31.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 30.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.875″ |
| Pickets | 2 | 0.875″ x 1.5″ x 29.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 28.625″ |
| Pickets | 2 | 0.875″ x 1.5″ x 28.25″ |
| Picket Caps | 16 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
