Ashington 36″ Vinyl Railing Master CAD
Material List – 36″ x 4′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 48″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 48″ |
| Metal Channel | 2 | Fits into top rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ |
| Turned Spindle | 10 | Turned Spindle x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |

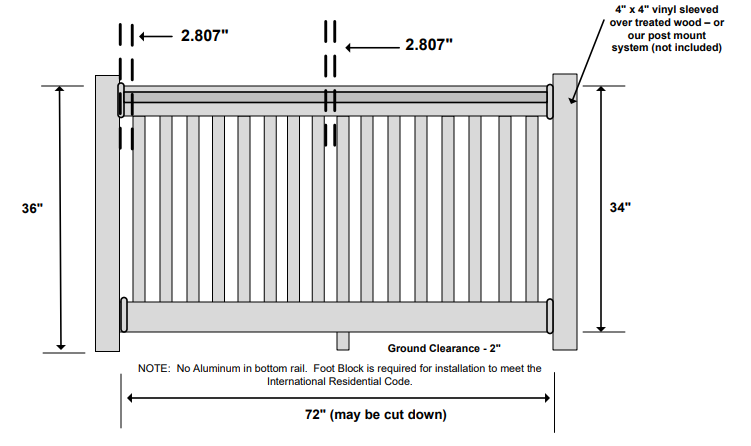

Material List – 36″ x 6′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 72″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 72″ |
| Metal Channel | 2 | Fits into top rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ |
| Turned Spindle | 16 | Turned Spindle x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |
Material List – 36″ x 8′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 96″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 96″ |
| Metal Channel | 2 | Fits into top rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ |
| Turned Spindle | 21 | Turned Spindle x 32″ |
Material List – 36″ x 10′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 119.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 119.5″ |
| Metal Channel | 1 | Fits into top rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ |
| Turned Spindles | 26 | Turned Spindle x 32″ |
| 1.5″ Food Block | 2 | 1.5″ Foot block |
Material List – 36″ x 4′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail Top | 1 | T-Rail-48″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 48″ |
| 4′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″(pair) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 7 | 1.5″ x 1.5″ x 32″ |

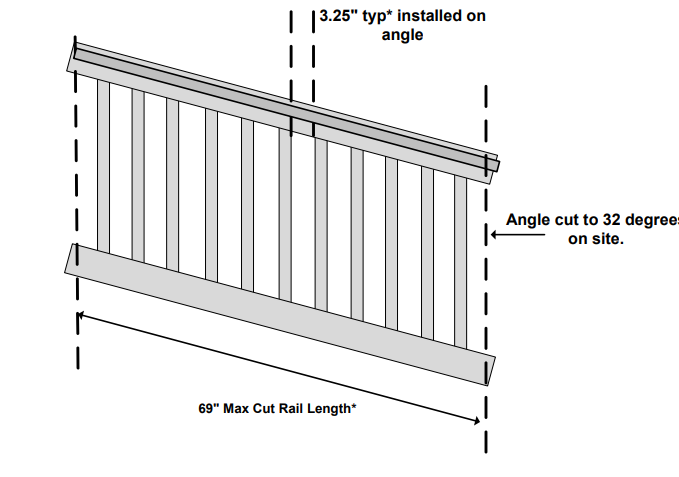

Material List – 36″ x 6′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail Top | 1 | T-Rail-72″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 72″ |
| 6′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″(pair) | 1 | 2″ x 3.5″ Stair Set |
| Turned Spindle | 12 | 1.5″ Turned Spindle x 32″ |
Material List – 36″ x 8′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail | 1 | T-Rail Top – 96″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 96″ |
| 8′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Stair Set |
| Turned Spindle | 16 | 1.5″ Turned Spindle x 32″ |
Material List – 36″ x 10′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail | 1 | T-Rail Top – 120″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 120″ |
| 10′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Stair Set |
| Turned Spindle | 18 | 1.5″ Turned Spindle x 32″ |
