Bexley 36″ Vinyl Railing Master CAD

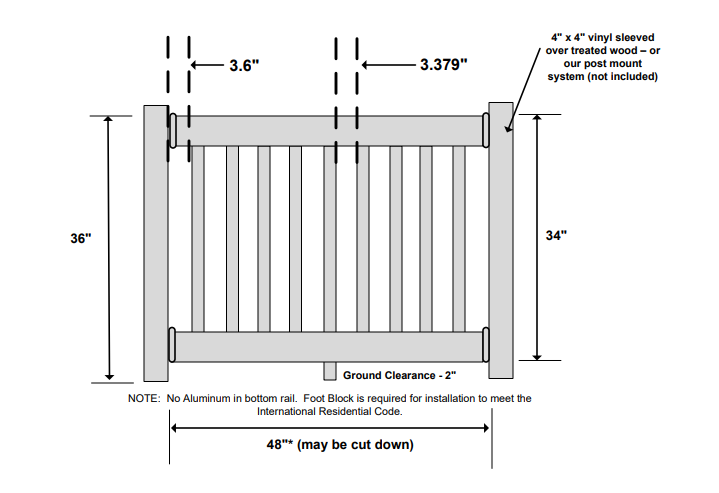

Material List – 36″ x 4′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 48″ |
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Metal Channel | 1 | Fits into top rail |
| Straight Bkts (Pairs) | 2 | 2″ x 3.5″ Straight Set |
| Pickets | 9 | 1.5″ x 1.5″ x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |

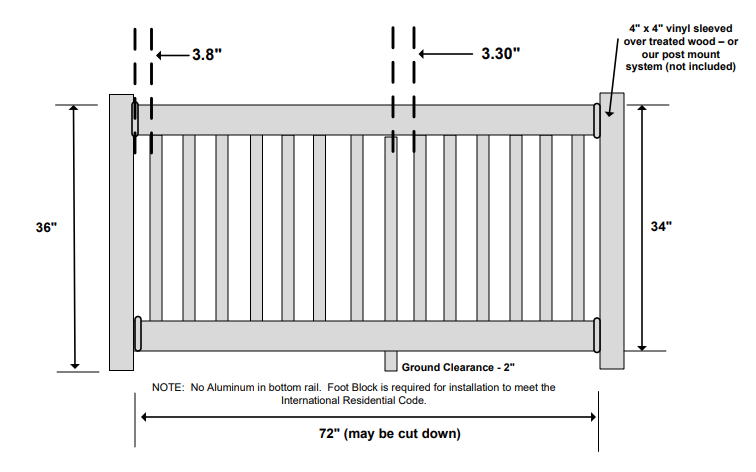

Material List – 36″ x 6′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 72″ |
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Metal Channel | 1 | Fits into top rail |
| Straight Bkts (Pairs) | 2 | 2″ x 3.5″ Straight Set |
| Pickets | 14 | 1.5″ x 1.5″ x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |
Material List – 36″ x 8′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 96″ |
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Metal Channel | 1 | Fits into top rail |
| Straight Bkts (Pairs) | 2 | 2″ x 3.5″ Straight Set |
| Pickets | 18 | 1.5″ x 1.5″ x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |

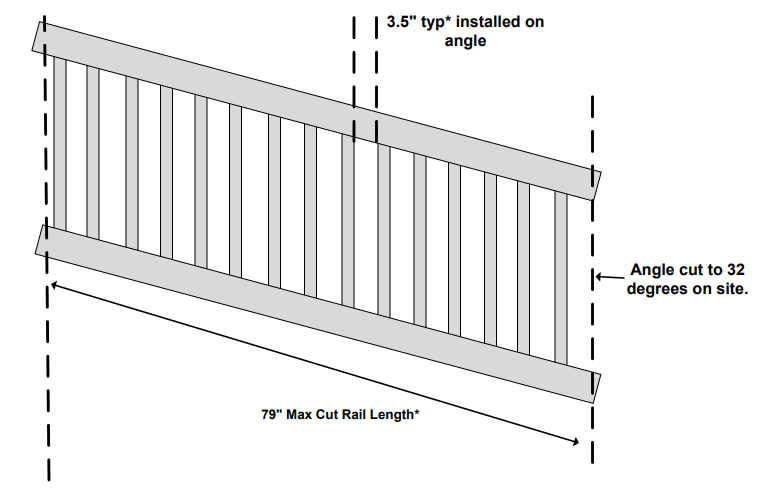

Material List – 36″ x 6′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 72″ |
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| 6′ Metal Channel | 2 | Fits into top and bottom rail |
| Straight DB Brackets | 1 | 2″ x 3.5″ Deck Board Stair Set |
| Stair Bkts (Pairs) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 11 | 1.5″ x 1.5″ x 32″ |
Material List – 36″ x 8′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 96″ |
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| 8′ Metal Channel | 2 | Fits into top and bottom rail |
| Straight DB Brackets | 1 | 2″ x 3.5″ Deck Board Stair Set |
| Stair Bkts (Pairs) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 15 | 1.5″ x 1.5″ x 32″ |
