Bradford 42″ Vinyl Railing Master CAD
Material List – 42″ x 4′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 48″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 48″ |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ Straight Set |
| Pickets | 11 | Black- .75″ x 38″ Square Aluminum Spindles |
Material List – 42″ x 6′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 72″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 72″ |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ Straight Set |
| Pickets | 16 | Black – .75″ x 38″ Square Aluminum Pickets |

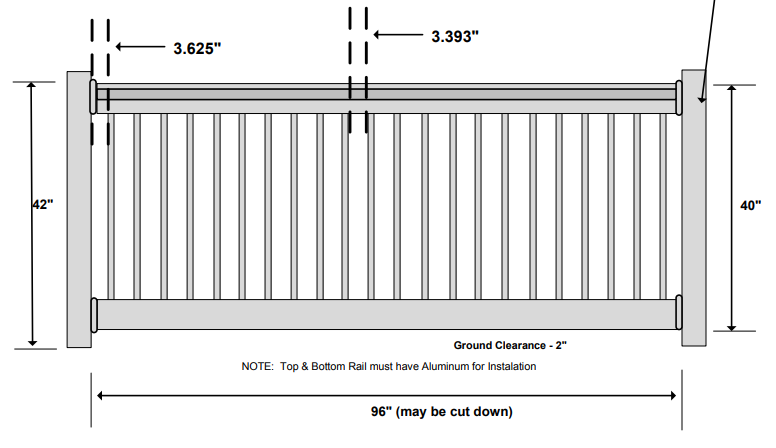

Material List – 42″ x 8′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 96″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 96″ |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ Straight Set |
| Pickets | 22 | Black – .75″ x 38″ Square Aluminum Pickets |
Material List – 42″ x 10′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail – T-Rail | 1 | T-Rail Top – 120″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 120″ |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | T-Rail & 2″ x 3.5″ Straight Set |
| Pickets | 27 | Black – .75″ x 38″ Square Aluminum Pickets |
Material List – 42″ x 4′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail Top | 1 | T-Rail-48″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 48″ |
| 6′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″(pair) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 8 | Black – .75″ x 38″ Square Aluminum Pickets |
Material List – 42″ x 6′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail Top | 1 | T-Rail-72″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 72″ |
| 6′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″(pair) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 13 | Black – .75″ x 38″ Square Aluminum Pickets |
Material List – 42″ x 8′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail | 1 | T-Rail Top – 96″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 96″ |
| 8′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 18 | Black – .75″ x 38″ Square Aluminum Pickets |
Material List – 42″ x 10′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail | 1 | T-Rail Top – 120″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 120″ |
| 8′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair T-Rail Top (pair) | 1 | T-Rail Stair Set |
| Stair 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Stair Set |
| Pickets | 23 | Black – .75″ x 38″ Square Aluminum Pickets |
