Brighton 36″ Vinyl Railing Master CAD

Material List – 36″ x 4′ Panel

ITEM	QTY	DIMENSIONS
Top Rail – T-Rail	1	T-Rail Top – 48″
Bottom Rail	1	2″ x 3.5″ x 48″
Metal Channel	1	Fits into the top rail
Straight Bkts	2	T-Rail & 2″ x 3.5″ Straight Set – 1182
Picket	9	0.875″ x 1.5″ x 32″
1.5″ Foot Block	1	1.5″ Foot Block

Material List – 36″ x 6′ Panel

ITEM	QTY	DIMENSIONS
Top Rail – T-Rail	1	T-Rail Top – 72″
Bottom Rail	1	2″ x 3.5″ x 72″
Metal Channel	1	Fits into the top rail
Straight Bkts	2	T-Rail & 2″ x 3.5″ Straight Set – 1182
Picket	14	0.875″ x 1.5″ x 32″
1.5″ Foot Block	1	1.5″ Foot Block

Material List – 36″ x 8′ Panel

ITEM	QTY	DIMENSIONS
Top Rail – T-Rail	1	T-Rail Top – 96″
Bottom Rail	1	2″ x 3.5″ x 96″
Metal Channel	1	Fits into the top rail
Straight Bkts	2	T-Rail & 2″ x 3.5″ Straight Set – 1182
Picket	18	0.875″ x 1.5″ x 32″
1.5″ Foot Block	1	1.5″ Foot Block

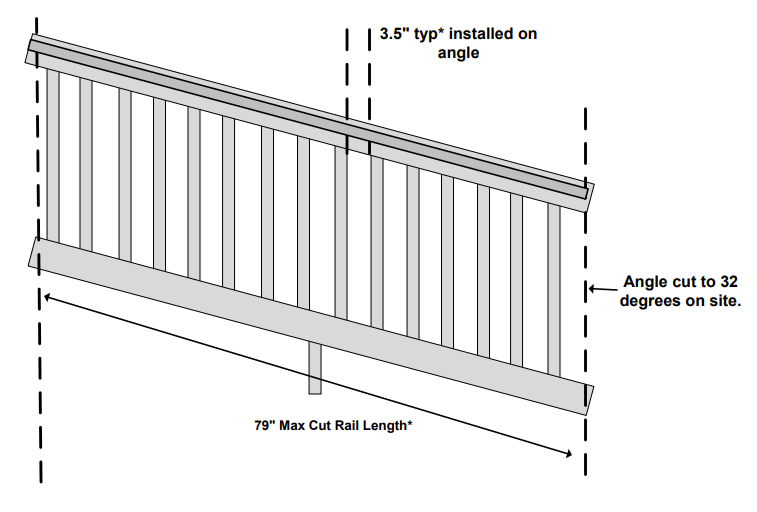

Material List – 36″ x 4′ Stair Panel

ITEM	QTY	DIMENSIONS
T-Rail Top	1	T-Rail – 48″
2″ x 3.5″	2	2″ x 3.5″ x 48″
4′ Metal Channel	2	Fits in top and bottom rail
Stair T-Rail Top	2	T-Rail Stair Set
Stair Brkts	2	2″ x 3.5″ Stair Set
Picket	7	0.875″ x 1.5″ x 32″

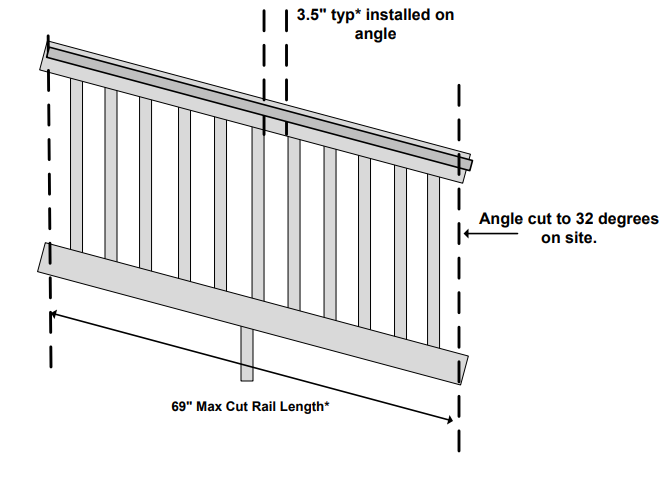

Material List – 36″ x 6′ Stair Panel

ITEM	QTY	DIMENSIONS
T-Rail Top	1	T-Rail – 72″
2″ x 3.5″	2	2″ x 3.5″ x 72″
6′ Metal Channel	1	Fits in top and bottom rail
Stair T-Rail Top	2	T-Rail Stair Set – 1277
Stair Brkts	2	2″ x 3.5″ Stair Set – 1276
Picket	11	0.875″ x 1.5″ x 32″
1.5″ Foot Block	1	1.5″ x 1.5″ x 10.6″

Material List – 36″ x 8′ Stair Panel

ITEM	QTY	DIMENSIONS
T-Rail	1	T-Rail Top – 96″
2″ x 3.5″	2	2″ x 3.5″ x 96″
8′ Metal Channel	1	Fits in Bottom rail
Stair T-Rail Top	2	T-Rail Stair Set – 1277
Stair Brkts	2	2″ x 3.5″ Stair Set – 1276
Picket	15	0.875″ x 1.5″ x 32″
1.5″ Foot Block	1	1.5″ x 1.5″ x 10.6″
