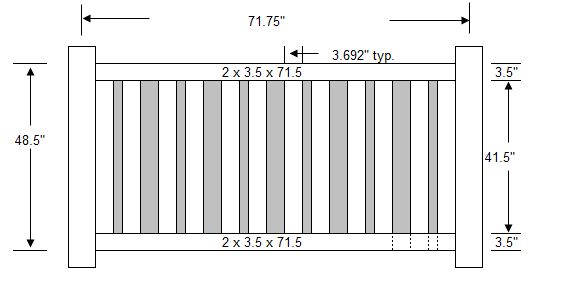

Cargill 4′ Pool Fence Master CAD
Material List – 4×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Rails | 2 | 2″ x 3.5″ x 71.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 71.5″ |
| Pickets | 5 | 0.875″ x 3″ x 47″ |
| Pickets | 6 | 0.875″ x 1.5″ x 47″ |
Material List – 4×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Rails | 2 | 2″ x 3.5″ x 95.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 95.5″ |
| Pickets | 7 | 0.875″ x 3″ x 47″ |
| Pickets | 8 | 0.875″ x 1.5″ x 47″ |
Material List – 4′ x 38″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52.5″ |
| Post Cap | 2 | 4″ x 4″ |
| Rails | 2 | 2″ x 3.5″ x 37.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 37″ |
| Pickets | 2 | 0.875″ x 3″ x 47″ |
| Pickets | 3 | 0.875″ x 1.5″ x 47″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 4′ x 54″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52.5″ |
| Post Cap | 2 | 4″ x 4″ |
| Rails | 2 | 2″ x 3.5″ x 53.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 53″ |
| Pickets | 3 | 0.875″ x 3″ x 47″ |
| Pickets | 4 | 0.875″ x 1.5″ x 47″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 4′ x 72″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 52.5″ |
| Post Cap | 2 | 4″ x 4″ |
| Rails | 2 | 2″ x 3.5″ x 71.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 71″ |
| Pickets | 5 | 0.875″ x 3″ x 47″ |
| Pickets | 6 | 0.875″ x 1.5″ x 47″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
