Cyrus 6′ Privacy Fence Master CAD

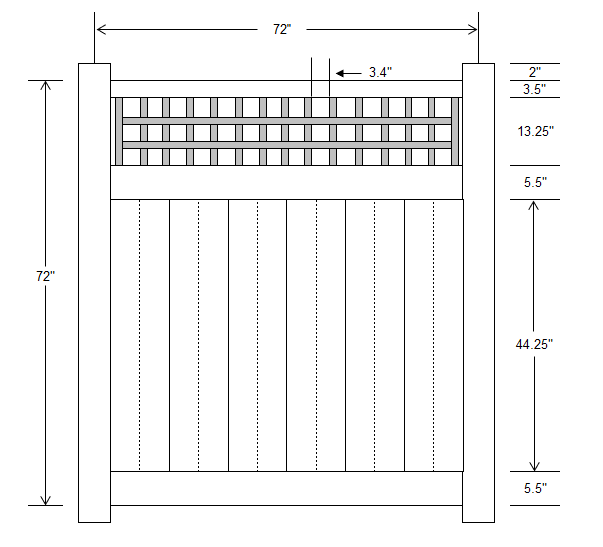

Material List – 6×6 Panel
ITEM | QTY | DIMENSIONS |
---|---|---|
Top Rail | 1 | 2″ x 3.5″ x 71.5″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
Metal | 1 | 1.25″ x 2″ x 71.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 44.25″ |
End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
Spindles | 13 | 1.25″ x 1.25″ x 16.75 |
T&G Pickets | 6 | 0.875″ x 11.3″ x 47.75″ |
Pickets | 2 | 0.875″ x 1.5″ x 65.75″ |

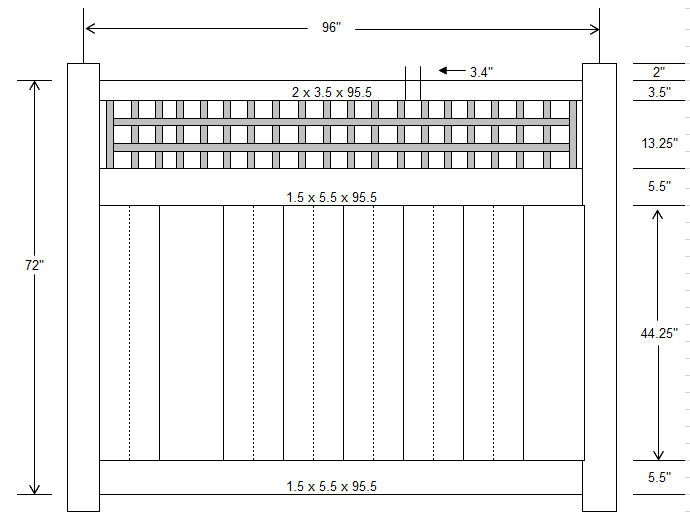

Material List – 6×8 Panel
ITEM | QTY | DIMENSIONS |
---|---|---|
Top Rail | 1 | 2″ x 3.5″ x 95.5″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
Metal | 1 | 1.25″ x 2″ x 95.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 44.25″ |
End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
Spindles | 18 | 1.25″ x 1.25″ x 16.75″ |
T&G Pickets | 8 | 0.875″ x 11.3″ x 47.75″ |
Pickets | 8 | 0.875″ x 1.5″ x 89.5″ |

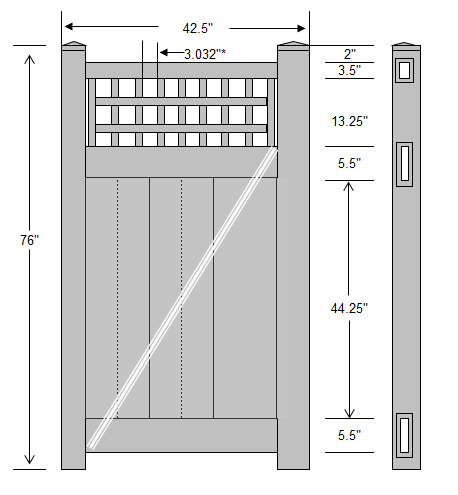

Material List – 6′ x 42.5″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 76″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 42″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 42″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 42″ |
Metal | 1 | 1.25″ x 2″ x 41.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 44.5″ |
End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
Spindles | 7 | 1.25″ x 1.25″ x 16.75″ |
Cross Brace | 1 | Cross Brace |
Pickets | 2 | 0.875″ x 1.5″ x 33.25″ |
T&G Pickets | 3 | 0.875″ x 11.3″ x 47.75″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |

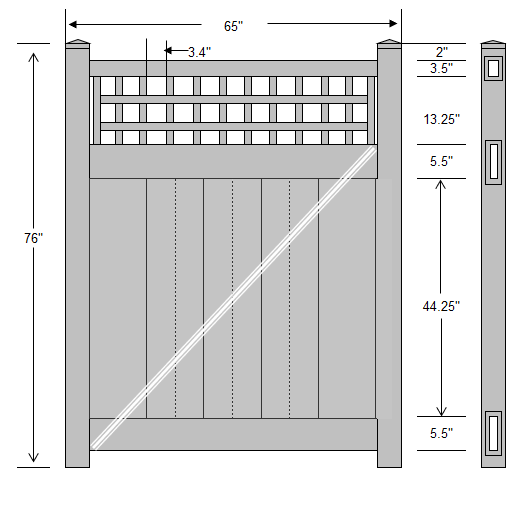

Material List – 6′ x 65″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 76″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 64.5″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 64.5″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 64.5″ |
Metal | 1 | 1.25″ x 2″ x 64″ |
U-Channel | 2 | 1.25″ x 1.5″ x 44.25″ |
End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
Spindles | 10 | 1.25″ x 1.25″ x 16.75″ |
Cross Brace | 1 | Cross Brace |
Pickets | 2 | 0.875″ x 1.5″ x 55.75″ |
T&G Pickets | 5 | 0.875″ x 11.3″ x 47.75″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |
