Cyrus 8′ Privacy Fence Master CAD

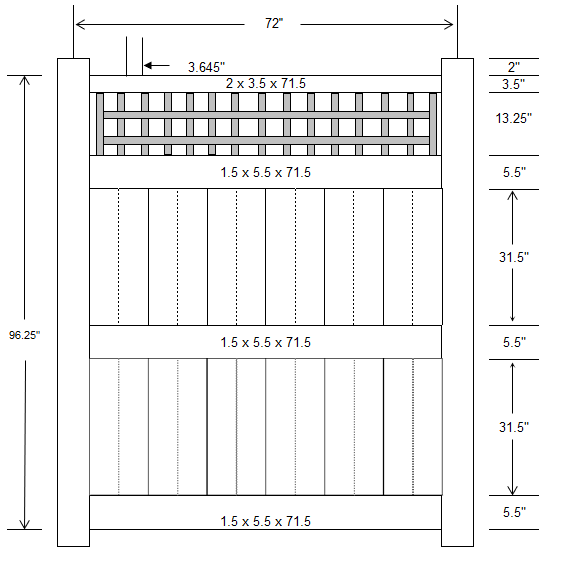

Material List – 8×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Mid Rail | 2 | 1.5″ x 5.5″ x 71.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
| Metal | 3 | 1.25″ x 2″ x 71.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 31.5″ |
| End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
| Spindles | 13 | 1.25″ x 1.25″ x 16.75 |
| T&G Pickets | 12 | 0.875″ x 11.3″ x 35″ |
| Pickets | 2 | 0.875″ x 1.5″ x 65.75″ |

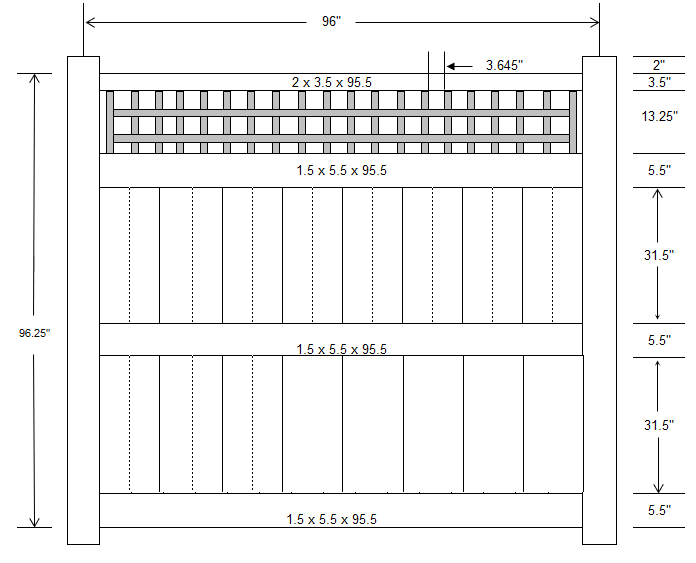

Material List – 8×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 95.5″ |
| Mid Rail | 2 | 1.5″ x 5.5″ x 95.5″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
| Metal | 3 | 1.25″ x 2″ x 95.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 31.5″ |
| End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
| Spindles | 18 | 1.25″ x 1.25″ x 16.75″ |
| T&G Pickets | 16 | 0.875″ x 11.3″ x 35″ |
| Pickets | 2 | 0.875″ x 1.5″ x 89.5″ |
Material List – 8′ x 42.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 100.25″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 42″ |
| Mid Rail | 2 | 1.5″ x 5.5″ x 42″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 42″ |
| Metal | 3 | 1.25″ x 2″ x 41.5″ |
| U-Channel | 4 | 1.25″ x 1.5″ x 31.5″ |
| End Spindles | 2 | 1.25″ x 1.25″ x 16.75″ |
| Spindles | 7 | 1.25″ x 1.25″ x 16.75″ |
| Cross Brace | 1 | Cross Brace |
| Pickets | 2 | 0.875″ x 1.5″ x 33.25″ |
| T&G Pickets | 6 | 0.875″ x 11.3″ x 35″ |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
