CAD – Edmonton 7′


Edmonton 7′ Privacy Fence Master CAD

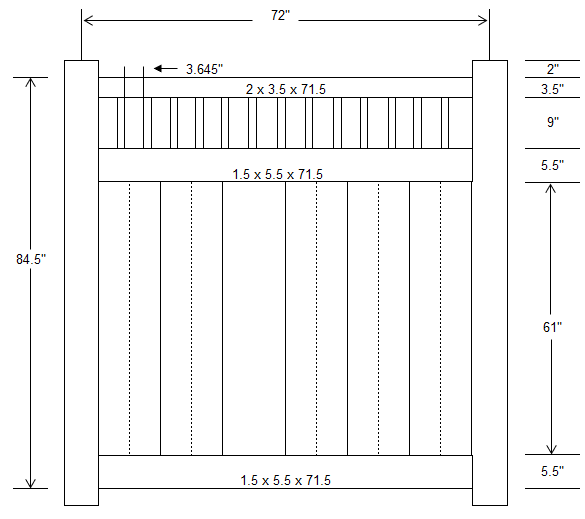

Material List – 7×6 Panel

ITEM QTY DIMENSIONS
Top Rail 1 2″ x 3.5″ x 71.5″
Mid Rail 1 1.5″ x 5.5″ x 71.5″
Bottom Rail 1 1.5″ x 5.5″ x 71.5″
Metal 1 1.25″ x 2″ x 71.5″
U-Channel 2 1.25″ x 1.5″ x 61″
Spindles 13 0.875″ x 1.5″ x 14.25″
T&G Pickets 6 0.875″ x 11.3″ x 64.25″
CAD diagram

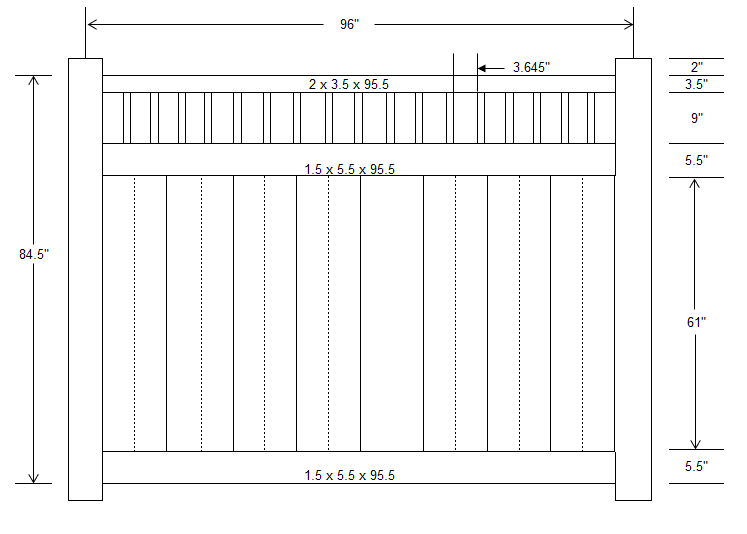

Material List – 7×8 Panel

ITEM QTY DIMENSIONS
Top Rail 1 2″ x 3.5″ x 95.5″
Mid Rail 1 1.5″ x 5.5″ x 95.5″
Bottom Rail 1 1.5″ x 5.5″ 95.5″
Metal 1 1.25″ x 2″ x 95.5″
U-Channel 2 1.25″ x 1.5″ x 61″
Spindles 17 0.875″ x 1.5″ x 14.25″
T&G Pickets 8 0.875″ x 11.3″ x 64.25″
CAD diagram

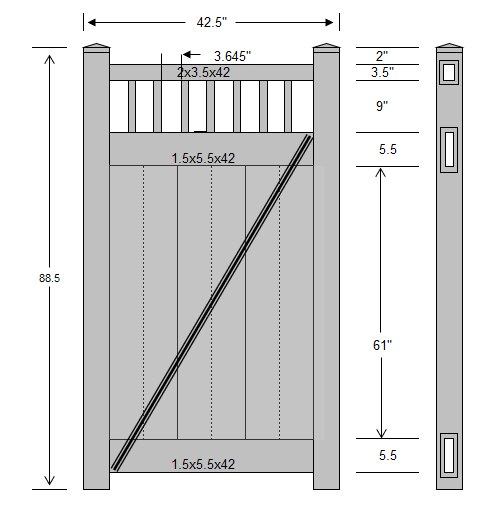

Material List – 7′ x 42.5″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 88.5″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 42″
Mid Rail 1 1.5″ x 5.5″ x 42″
Bottom Rail 1 1.5″ x 5.5″ x 42″
Metal 1 1.25″ x 2″ x 41.5″
U-Channel 2 1.25″ x 1.5″ x 61″
Spindles 7 0.875″ x 1.5″ x 14.25″
Cross Brace 1 Cross Brace
T&G Pickets 3 0.875″ x 11.3″ x 64.25″
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A
CAD Diagram

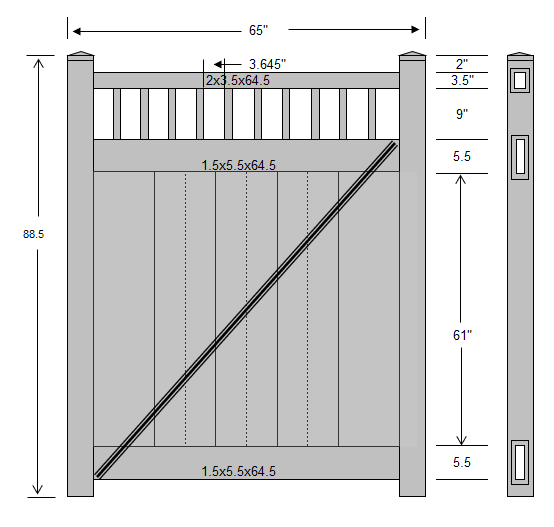

Material List – 7′ x 65″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 88.5″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 64.5″
Mid Rail 1 1.5″ x 5.5″ x 64.5″
Bottom Rail 1 1.5″ x 5.5″ x 64.5″
Metal 1 1.25″ x 2″ x 64″
U-Channel 2 1.25″ x 1.5″ x 61″
Spindles 10 0.875″ x 1.5″  x 14.25″
Cross Brace 1 Cross Brace
T&G Pickets 5 0.875″ x 11.3″ x 64.25″
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A
CAD Diagram
