Grenada 6′ Semi-Privacy Fence Master CAD

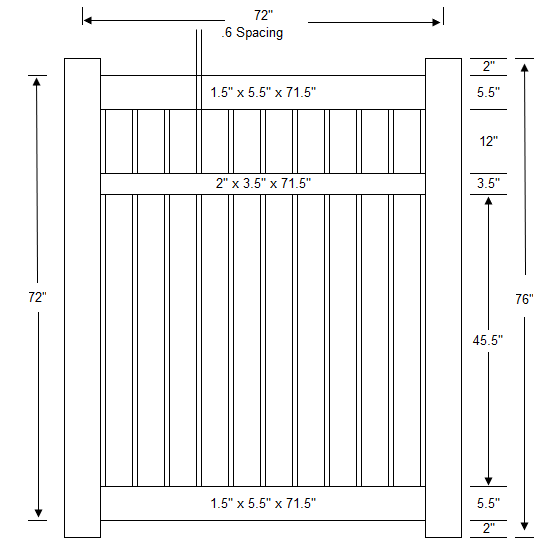

Material List – 6×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Btm Rail | 2 | 1.5″ x 5.5″ x 71.5″ |
| Mid Rail | 1 | 2 x 3.5″ x 71.5″ |
| Metal | 1 | 1.25″ x 2″ x 71.5″ |
| Picket | 10 | 0.875″ x 6″ x 64.25″ |

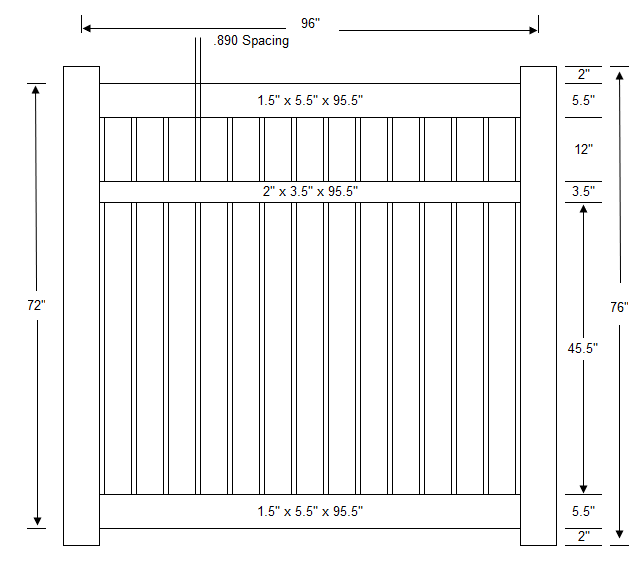

Material List – 6×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Btm Rail | 2 | 1.5″ x 5.5″ x 95.5″ |
| Mid Rail | 1 | 2″ x 3.5″ x 95.5″ |
| Metal | 1 | 1.25″ x 2″ x 95.5″ |
| Picket | 13 | 0.875″ x 6″ x 64.25″ |

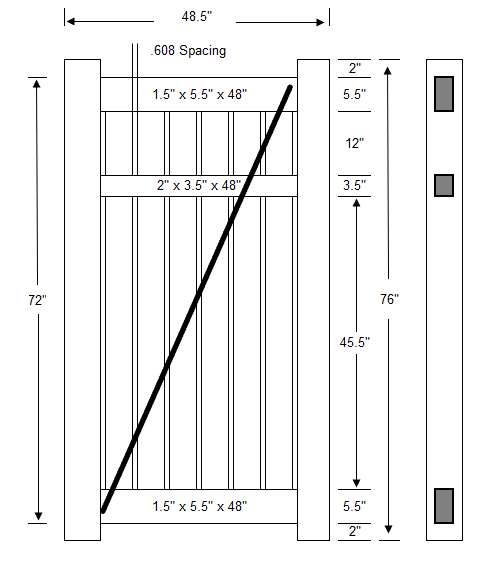

Material List – 6′ x 48.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 76″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 48″ |
| Mid Rail | 1 | 2″ x 3.5″ x 48″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 48″ |
| Metal | 1 | 1.25″ x 2″ x 47.5″ |
| Pickets | 6 | 0.875″ x 6″ x 64.25″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

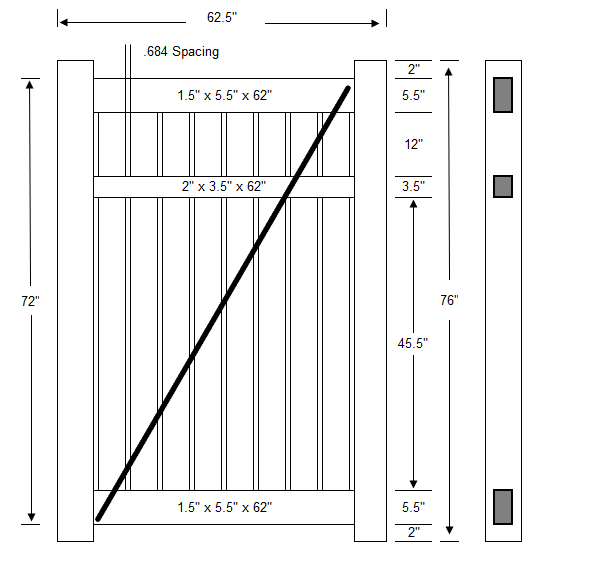

Material List – 6′ x 62.5″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 76″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 1.5″ x 5.5″ x 62″ |
| Mid Rail | 1 | 2″ x 3.5″ x 62″ |
| Bottom Rail | 1 | 1.5″ x 5.5″ x 62″ |
| Metal | 1 | 1.25″ x 2″ x 61.5″ |
| Pickets | 8 | 0.875″ x 6″ x 64.25″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
