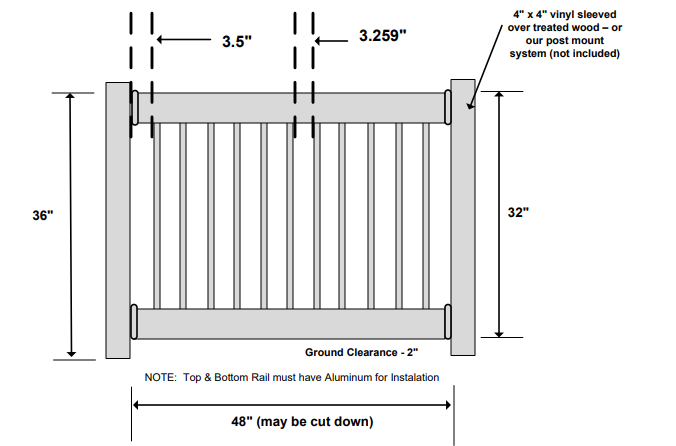

Halton 36″ Vinyl Railing Master CAD
Material List – 36″ x 4′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 48″ |
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | 2″ x 3.5″ Straight Set |
| Spindles | 11 | Black- .75″ x 32″ Square Aluminum Spindles |

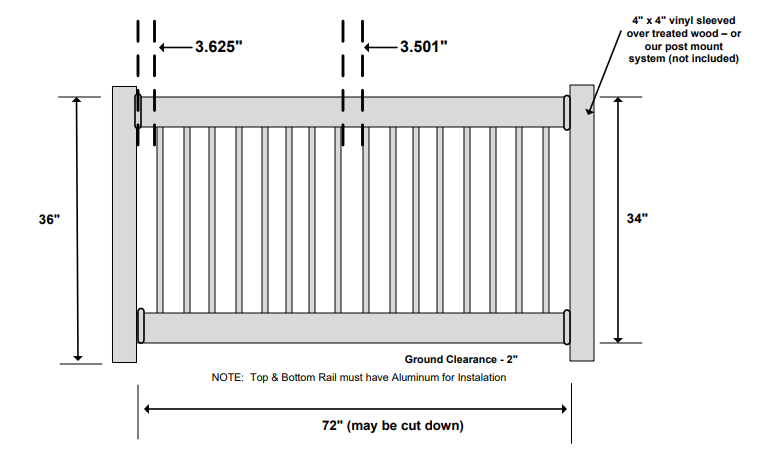

Material List – 36″ x 6′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 72″ |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | 2″ x 3.5″ Straight Set |
| Spindles | 16 | Black- .75″ x 32″ Square Aluminum Spindles |
Material List – 36″ x 8′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Top & Bottom Rail | 2 | 2″ x 3.5″ x 96″ |
| Metal Channel | 2 | Fits into top and bottom rail |
| Straight Bkts | 2 | 2″ x 3.5″ Straight Set |
| Spindles | 22 | Black- .75″ x 32″ Square Aluminum Spindles |
Material List – 36″ x 6′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Boaard Clip Kit |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 72″ |
| 6′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair DB Top (pair) | 1 | Deck Board Stair Set |
| Stair 2″ x 3.5″(pair) | 1 | 2″ x 3.5″ Stair Set |
| Spindles | 13 | Black – .75″ x 32″ Square Aluminum Spindles |

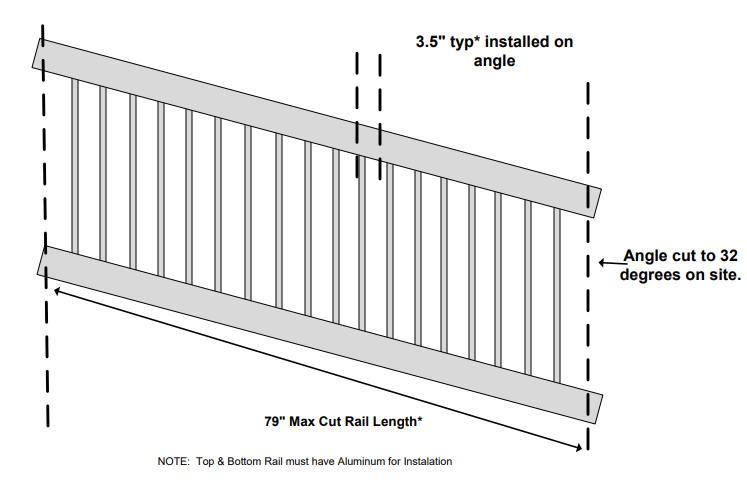

Material List – 36″ x 8′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| 2″ x 3.5″ | 2 | 2″ x 3.5″ x 96″ |
| 8′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair DB Top (pair) | 1 | Deck Board Stair Set |
| Stair 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Stair Set |
| Spindles | 18 | Black – .75″ x 32″ Square Aluminum Spindles |
