Harwich 5′ Pool Fence Master CAD

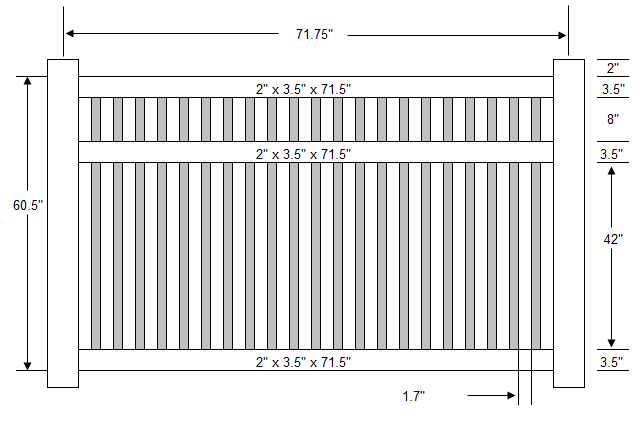

Material List – 5×6 Panel

ITEM	QTY	DIMENSIONS
Top & Bottom Rails	2	2″ x 3.5″ x 71.5″
Mid Rail	1	2″ x 3.5″ x 71.5″
Metal	1	1.5″ x 3.25″ x 71.5″
Pickets	21	0.875″ x 1.5″ x 59″

Material List – 5×8 Panel

ITEM	QTY	DIMENSIONS
Top & Bottom Rails	2	2″ x 3.5″ x 95.5″
Mid Rail	1	2″ x 3.5″ x 95.5″
Metal	1	1.5″ x 3.25″ x 95.5″
Pickets	28	0.875″ x 1.5″ x 59″

Material List – 5′ x 36″ Gate

ITEM	QTY	DIMENSIONS
Socket Posts	2	4″ x 4″ x 64.5″
Post Cap	2	4″ x 4″
Top & Bottom Rails	2	2″ x 3.5″ x 35.5″
Mid Rail	1	2″ x 3.5″ x 35.5″
Metal	1	1.5″ x 3.25″ x 35″
Pickets	8	0.875″ x 1.5″ x 59″
Cross Brace	1	Cross Brace
Vinyl Fence Glue	1	N/A
Cross Brace Screws and Caps	1	N/A

Material List – 5′ x 48″ Gate

ITEM	QTY	DIMENSIONS
Socket Posts	2	4″ x 4″ x 64.5″
Post Cap	2	4″ x 4″
Top & Bottom Rails	2	2″ x 3.5″ x 47.5″
Mid Rail	1	2″ x 3.5″ x 47.5″
Metal	1	1.5″ x 3.25″ x 47″
Pickets	12	0.875″ x 1.5″ x 59″
Cross Brace	1	Cross Brace
Vinyl Fence Glue	1	N/A
Cross Brace Screws and Caps	1	N/A

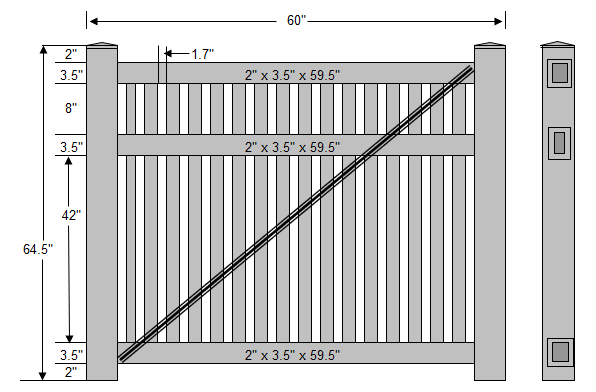

Material List – 5′ x 60″ Gate

ITEM	QTY	DIMENSIONS
Socket Posts	2	4″ x 4″ x 64.5″
Post Cap	2	4″ x 4″
Top & Bottom Rails	2	2″ x 3.5″ x 59.5″
Mid Rail	1	2″ x 3.5″ x 59.5″
Metal	1	1.5″ x 3.25″ x 59″
Pickets	16	0.875″ x 1.5″ x 59″
Cross Brace	1	Cross Brace
Vinyl Fence Glue	1	N/A
Cross Brace Screws and Caps	1	N/A

Material List – 5′ x 72″ Gate

ITEM	QTY	DIMENSIONS
Socket Posts	2	4″ x 4″ x 64.5″
Post Cap	2	4″ x 4″
Top & Bottom Rails	2	2″ x 3.5″ x 71.5″
Mid Rail	1	2″ x 3.5″ x 71.5″
Metal	1	1.5″ x 3.25″ x 71″
Pickets	13	0.875″ x 1.5″ x 59″
Cross Brace	1	Cross Brace
Vinyl Fence Glue	1	N/A
Cross Brace Screws and Caps	1	N/A
