Hastings 36″ Vinyl Railing Master CAD
Material List – 36″ x 4′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Top & Bottom Rail | 1 | 2″ x 3.5″ x 48″ |
| Metal Channel | 2 | Fits into top rail |
| Straight Bkts | 2 | 2″ x 3.5″ Straight Set |
| Turned Spindle | 10 | 1.5″ Turned Spindle x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |

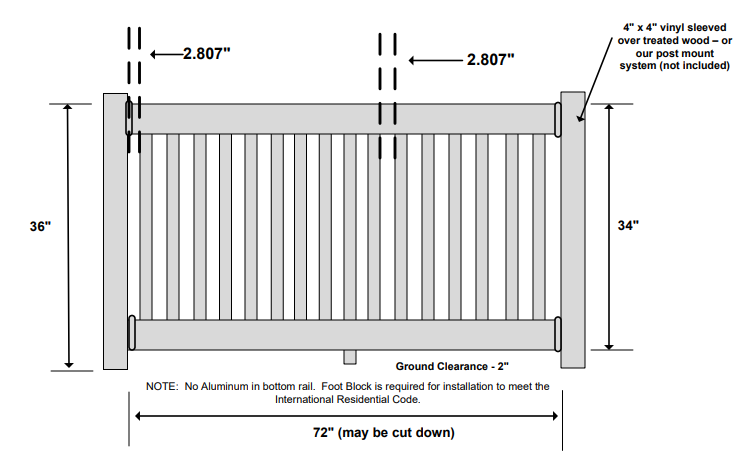

Material List – 36″ x 6′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Top & Bottom Rail | 1 | 2″ x 3.5″ x 72″ |
| Metal Channel | 2 | Fits into top rail |
| Straight Bkts | 2 | 2″ x 3.5″ Straight Set |
| Turned Spindle | 16 | 1.5″ Turned Spindle x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |
Material List – 36″ x 8′ Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Top & Bottom Rail | 1 | 2″ x 3.5″ x 96″ |
| Metal Channel | 2 | Fits into top rail |
| Straight Bkts | 2 | 2″ x 3.5″ Straight Set |
| Turned Spindle | 21 | 1.5″ Turned Spindle x 32″ |
| 1.5″ Foot Block | 1 | 1.5″ Foot block with trim |
Material List – 36″ x 6′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| AMBR-DECKCLIP-KIT | 1 | Deck Board Clip Kit |
| Top & Bottom Rail | 1 | 2″ x 3.5″ x 72″ |
| 6′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair DB 2″x 3.5″ (pair) | 1 | 2″ x 3.5″ Deck Board Stair Brackets |
| Stair 2″ x 3.5″(pair) | 1 | 2″ x 3.5″ Stair Set |
| Turned Spindle | 12 | 1.5″ Turned Spindle x 32″ |

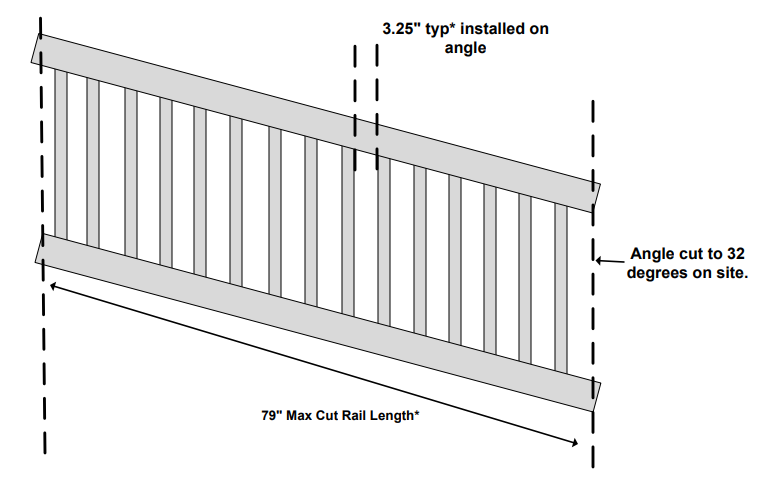

Material List – 36″ x 8′ Stair Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| T-Rail | 1 | T-Rail Top – 96″ |
| 2″ x 3.5″ | 1 | 2″ x 3.5″ x 96″ |
| 8′ Metal Channel | 2 | Fits in top and bottom rail |
| Stair DB 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Deck Board Stair Brackets |
| Stair 2″ x 3.5″ (pair) | 1 | 2″ x 3.5″ Stair Brackets |
| Turned Spindle | 16 | 1.5″ Turned Spindle x 32″ |
