Stranley 5′ Picket Fence Master CAD

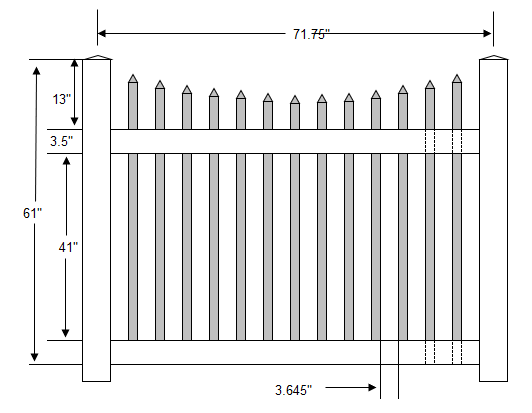

Material List – 5×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Aluminum | 1 | 1.5″ x 3.25″ x 71.5″ |
| Pickets | 2 | 0.875″ x 1.5″ x 58.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 56.75″ |
| Pickets | 2 | 0.875″ x 1.5″ x 55.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 54.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 53.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 52.875″ |
| Pickets | 1 | 0.875″ x 1.5″ x 52.5″ |
| Picket Caps | 13 | 0.875″ x 1.5″ |

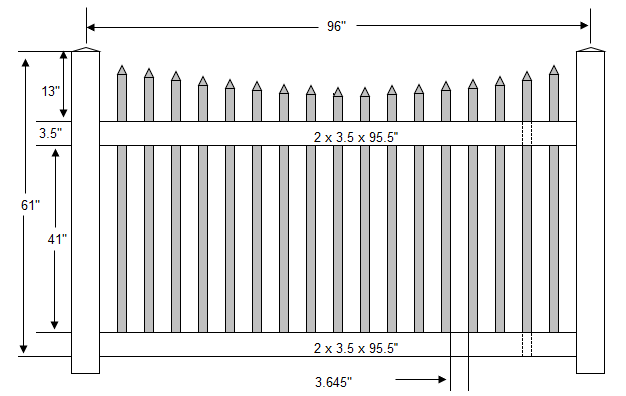

Material List – 5×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 95.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ 95.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 95.5″ |
| Pickets | 2 | 0.875″ x 1.5″ x 58.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 57.125″ |
| Pickets | 2 | 0.875″ x 1.5″ x 56.125″ |
| Pickets | 2 | 0.875″ x 1.5″ x 55.125″ |
| Pickets | 2 | 0.875″ x 1.5″ x 54.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 53.75″ |
| Pickets | 2 | 0.875″ x 1.5″ x 53.125″ |
| Pickets | 2 | 0.875″ x 1.5″ x 52.75″ |
| Pickets | 1 | 0.875″ x 1.5″ x 52.5″ |
| Picket Caps | 17 | 0.875″ x 1.5″ |

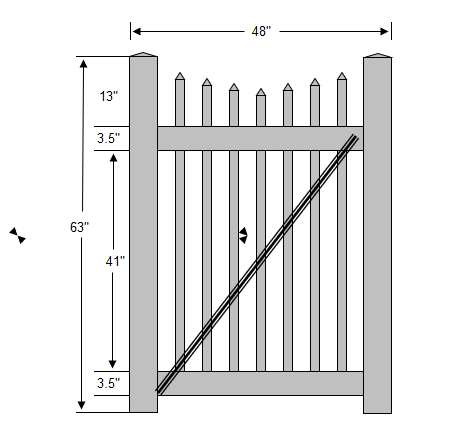

Material List – 5′ x 48″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 63″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 47″ |
| Pickets | 2 | 0.875″ x 1.5″ x 58.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 56.75″ |
| Pickets | 2 | 0.875″ x 1.5″ x 55.375″ |
| Pickets | 1 | 0.875″ x 1.5″ x 54.25″ |
| Picket Caps | 7 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

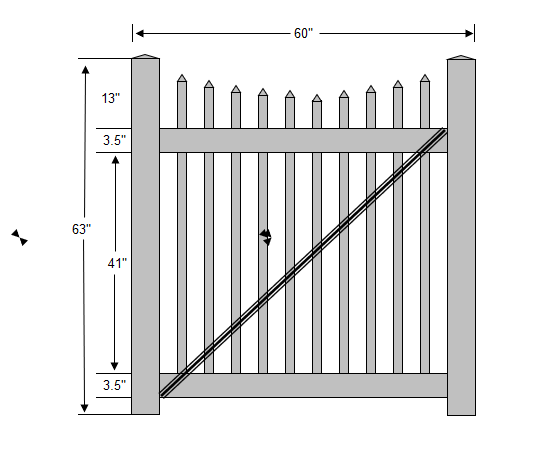

Material List – 5′ x 60″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 63″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 59.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 59″ |
| Pickets | 2 | 0.875″ x 1.5″ x 58.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 56.75″ |
| Pickets | 2 | 0.875″ x 1.5″ x 55.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 54.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 53.375″ |
| Picket Caps | 10 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
Material List – 5′ x 72″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 63″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Bottom Rail | 1 | 2″ x 3.5″ x 71.5″ |
| Metal | 1 | 1.5″ x 3.25″ x 71″ |
| Pickets | 2 | 0.875″ x 1.5″ x 58.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 56.75″ |
| Pickets | 2 | 0.875″ x 1.5″ x 55.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 54.25″ |
| Pickets | 2 | 0.875″ x 1.5″ x 53.375″ |
| Pickets | 2 | 0.875″ x 1.5″ x 52.875″ |
| Picket Caps | 12 | 0.875″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
