Turnbridge 6′ Privacy Fence Master CAD

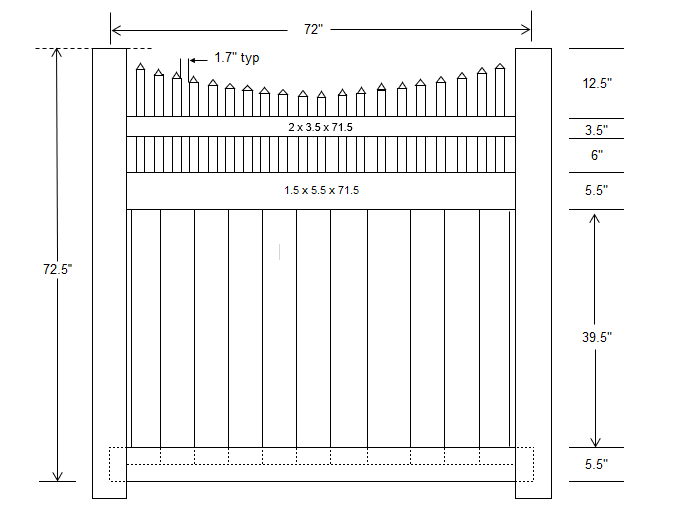

Material List – 6×6 Panel
ITEM | QTY | DIMENSIONS |
---|---|---|
Top Rail | 1 | 2″ x 3.5″ x 71.5″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 71.5″ |
Metal | 1 | 1.25″ x 1.75″ x 71.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18″ |
Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
Spindles | 2 | 0.875″ x 1.5″ x 16.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.25″ |
Picket Caps | 20 | 0.875″ x 1.5″ |
T&G Pickets | 11 | 0.875″ x 6″ x 43″ |

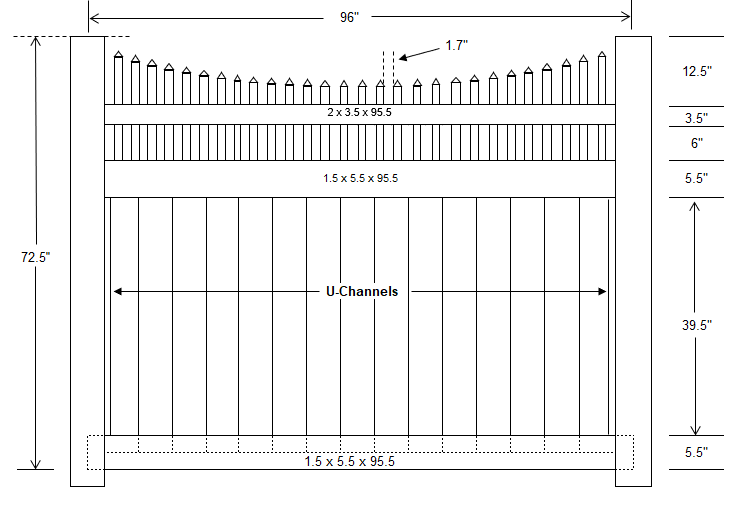

Material List – 6×8 Panel
ITEM | QTY | DIMENSIONS |
---|---|---|
Top Rail | 1 | 2″ x 3.5″ x 95.5″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 95.5″ |
Metal | 1 | 1.25″ x 1.75″ x 95.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.375″ |
Spindles | 2 | 0.875″ x 1.5″ x 20″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.625″ |
Spindles | 2 | 0.875″ x 1.5″ x 19″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.375″ |
Spindles | 2 | 0.875″ x 1.5″ x 17.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
Spindles | 2 | 0.875″ x 1.5″ x 16.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 16.25″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.375″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.25″ |
Picket Caps | 28 | 0.875″ x 1.5″ |
T&G Pickets | 15 | 0.875″ x 6″ x 43″ |

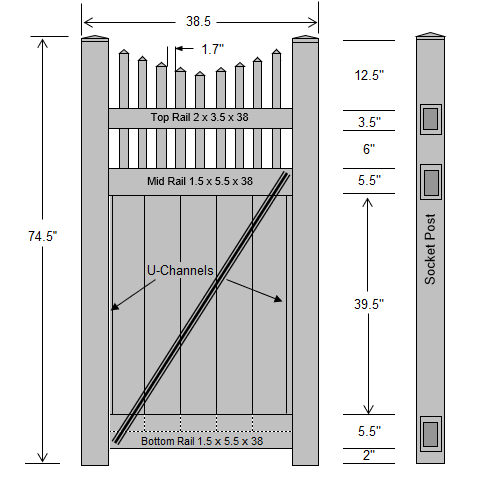

Material List – 6′ x 38.5″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 74.5″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 38″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 38″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 38″ |
Metal | 1 | 1.25″ x 1.75″ x 37.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
Spindles | 1 | 0.875″ x 1.5″ x 18.75″ |
Cross Brace | 1 | Cross Brace |
T&G Pickets | 5 | 0.875″ x 6″ x 43″ |
Picket Caps | 9 | 0.875″ x 1.5″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |

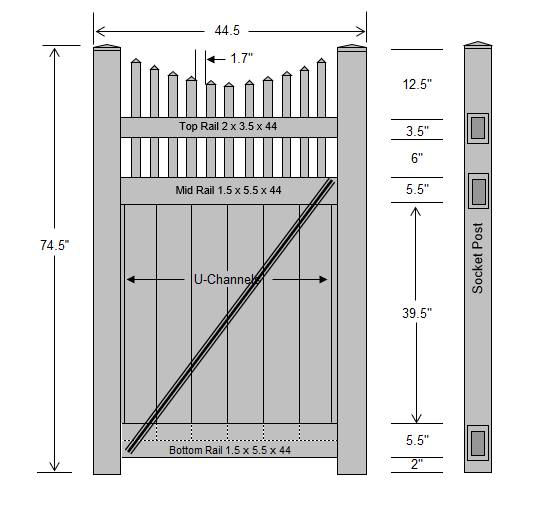

Material List – 6′ x 44.5″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 74.5″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 44″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 44″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 44″ |
Metal | 1 | 1.25″ x 1.75″ x 43.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18″ |
Spindles | 1 | 0.875″ x 1.5″ x 17.875″ |
Cross Brace | 1 | Cross Brace |
T&G Pickets | 6 | 0.875″ x 6″ x 43″ |
Picket Caps | 11 | 0.875″ x 1.5″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |

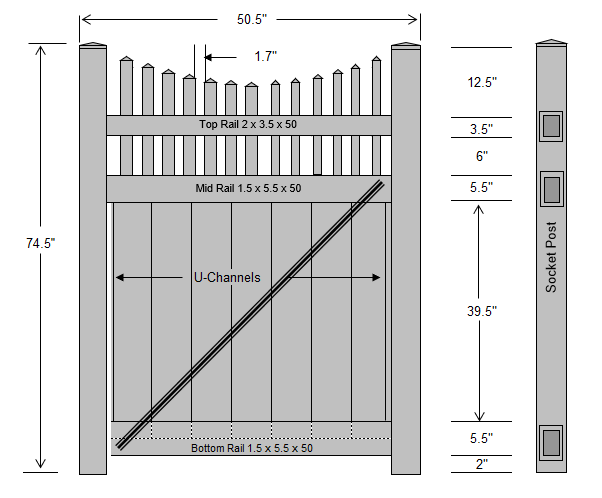

Material List – 6′ x 50.5″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 74.5″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 50″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 50″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 50″ |
Metal | 1 | 1.25″ x 1.75″ x 49.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18″ |
Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
Spindles | 1 | 0.875″ x 1.5″ x 17.125″ |
Cross Brace | 1 | Cross Brace |
T&G Pickets | 7 | 0.875″ x 6″ x 43″ |
Picket Caps | 13 | 0.875″ x 1.5″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |

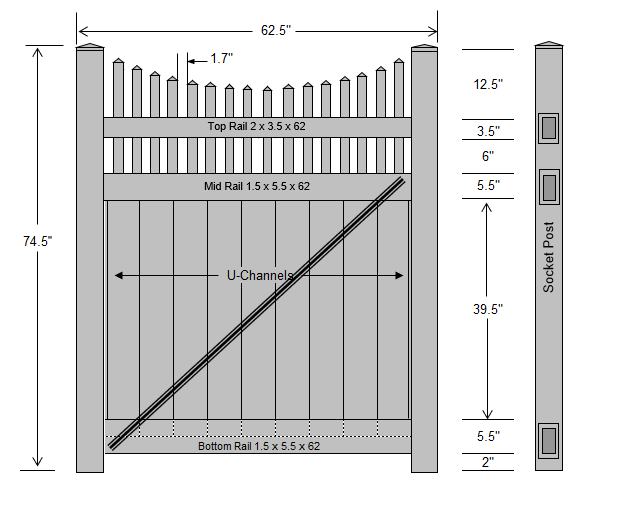

Material List – 6′ x 62.5″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 74.5″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 62″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 62″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 62″ |
Metal | 1 | 1.25″ x 1.75″ x 61.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18″ |
Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
Spindles | 2 | 0.875″ x 1.5″ x 16.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 16.25″ |
Cross Brace | 1 | Cross Brace |
T&G Pickets | 9 | 0.875″ x 6″ x 43″ |
Picket Caps | 16 | 0.875″ x 1.5″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |

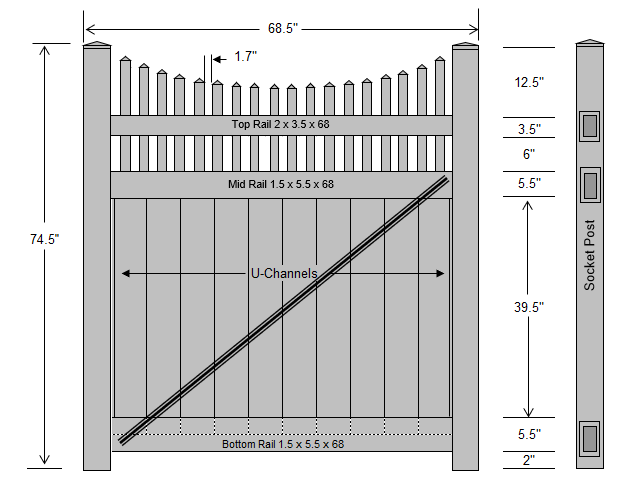

Material List – 6′ x 68.5″ Gate
ITEM | QTY | DIMENSIONS |
---|---|---|
Socket Posts | 2 | 4″ x 4″ x 74.5″ |
Post Cap | 2 | 4″ x 4″ |
Top Rail | 1 | 2″ x 3.5″ x 68″ |
Mid Rail | 1 | 1.5″ x 5.5″ x 68″ |
Bottom Rail | 1 | 1.5″ x 5.5″ x 68″ |
Metal | 1 | 1.25″ x 1.75″ x 67.5″ |
U-Channel | 2 | 1.25″ x 1.5″ x 39.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 21.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 20.75″ |
Spindles | 2 | 0.875″ x 1.5″ x 19.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 18″ |
Spindles | 2 | 0.875″ x 1.5″ x 17.25″ |
Spindles | 2 | 0.875″ x 1.5″ x 16.5″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.875″ |
Spindles | 2 | 0.875″ x 1.5″ x 15.625″ |
Cross Brace | 1 | Cross Brace |
T&G Pickets | 10 | 0.875″ x 6″ x 43″ |
Picket Caps | 18 | 0.875″ x 1.5″ |
Vinyl Fence Glue | 1 | N/A |
Cross Brace Screws and Caps | 1 | N/A |
