Washburn 4′ Picket Fence Master CAD
Material List – 4×6 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 72″ |
| Bottom Rail | 1 | 2″ x 6″ x 72″ |
| Aluminum | 1 | 1.75″ x 1.75″ x 71.75″ |
| Pickets | 11 | 1.5″ x 1.5″ x 37″ |
| Pickets | 2 | 1.5″ x 1.5″ x 39″ |
| Pickets | 2 | 1.5″ x 1.5″ x 41″ |
| Pickets | 4 | 1.5″ x 1.5″ x 43″ |
| Picket Caps | 19 | 1.5″ x 1.5″ |

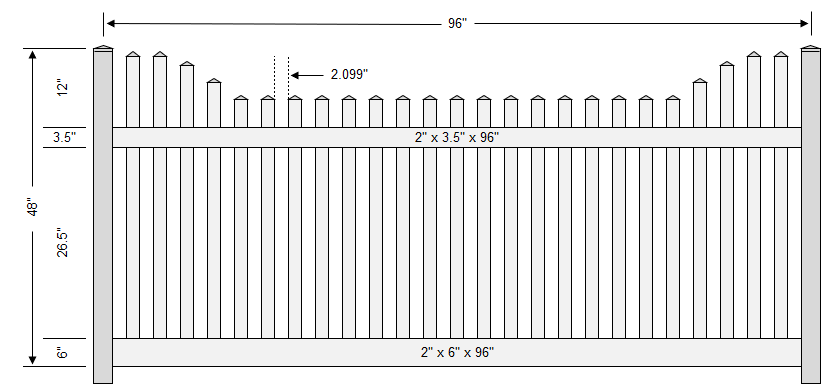

Material List – 4×8 Panel
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Top Rail | 1 | 2″ x 3.5″ x 96″ |
| Bottom Rail | 1 | 2″ x 6″ x 96″ |
| Metal | 1 | 1.75″ x 1.75″ x 95″ |
| Pickets | 17 | 1.5″ x 1.5″ x 37″ |
| Pickets | 2 | 1.5″ x 1.5″ x 39″ |
| Pickets | 2 | 1.5″ x 1.5″ x 41″ |
| Pickets | 4 | 1.5″ x 1.5″ x 43″ |
| Picket Caps | 25 | 1.5″ x 1.5″ |

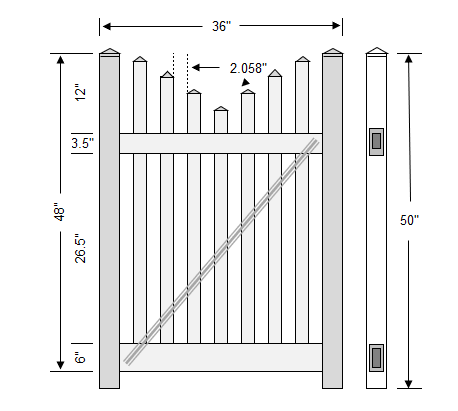

Material List – 4′ x 36″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 50″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 35.5″ |
| Bottom Rail | 1 | 2″ x 6″ x 35.5″ |
| Pickets | 1 | 1.5″ x 1.5″ x 37″ |
| Pickets | 2 | 1.5″ x 1.5″ x 39″ |
| Pickets | 2 | 1.5″ x 1.5″ x 41″ |
| Pickets | 2 | 1.5″ x 1.5″ x 43″ |
| Picket Caps | 7 | 1.5″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |

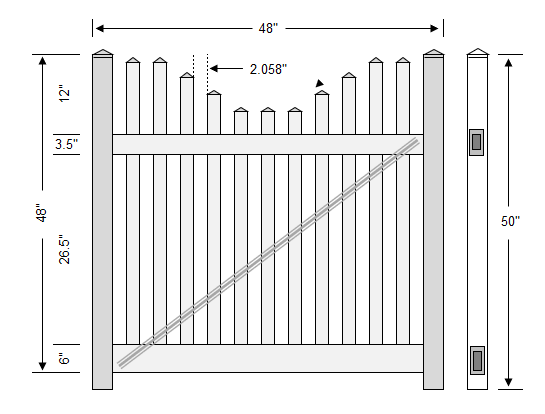

Material List – 4′ x 48″ Gate
| ITEM | QTY | DIMENSIONS |
|---|---|---|
| Socket Posts | 2 | 4″ x 4″ x 50″ |
| Post Cap | 2 | 4″ x 4″ |
| Top Rail | 1 | 2″ x 3.5″ x 47.5″ |
| Bottom Rail | 1 | 2″ x 6″ x 47.5″ |
| Pickets | 2 | 1.5″ x 1.5″ x 37″ |
| Pickets | 2 | 1.5″ x 1.5″ x 39″ |
| Pickets | 2 | 1.5″ x 1.5″ x 41″ |
| Pickets | 4 | 1.5″ x 1.5″ x 43″ |
| Picket Caps | 11 | 1.5″ x 1.5″ |
| Cross Brace | 1 | Cross Brace |
| Vinyl Fence Glue | 1 | N/A |
| Cross Brace Screws and Caps | 1 | N/A |
