CAD – Winchester 7′


Winchester 7′ Privacy Fence Master CAD


Material List – 7×8 Panel

ITEM QTY DIMENSIONS
Top Rail 1 2″ x 3.5″ x 95.5″
Mid Rail 1 1.5″ x 5.5″ x 95.5″
Bottom Rail 1 1.5″ x 5.5″ x 95.5″
Metal 1 1.25″ x 1.75″ x 95.5″
U-Channel 2 1.25″ x 1.5″ x 61″
End Caps 2 0.875″ x 1.5″ x 9″
Lattice 1 11.75″ x 90.25″
Pickets 8 0.875″ x 11.3″ x 64.25″
CAD diagram


Material List – 7′ x 42.5″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 88.5″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 42″
Mid Rail 1 1.5″ x 5.5″ x 42″
Bottom Rail 1 1.5″ x 5.5″ x 42″
Metal 1 1.25″ x 1.75″ x 41.5″
U-Channel 2 1.25″ x 1.5″ x 61″
End Caps 2 0.875″ x 1.5″ x 9″
Lattice 1 11.75″ x 33.75″
Cross Brace 1 Cross Brace
Pickets 3 0.875″ x 11.3″ x 64.25″
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A
CAD Diagram


Material List – 7′ x 53.75″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 88.5″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 53.25″
Mid Rail 1 1.5″ x 5.5″ x 53.25″
Bottom Rail 1 1.5″ x 5.5″ x 53.25″
Metal 1 1.25″ x 1.75″ x 52.75″
U-Channel 2 1.25″ x 1.5″ x 61″
End Caps 2 0.875″ x 1.5″ x 9″
Lattice 1 11.75″ x 45″
Cross Brace 1 Cross Brace
Pickets 4 0.875″ x 11.3″ x 64.25″
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A

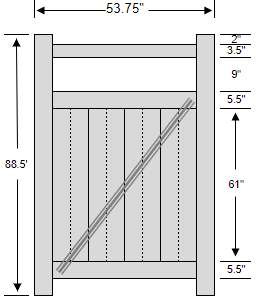

CAD Diagram


Material List – 7′ x 65″ Gate

ITEM QTY DIMENSIONS
Socket Posts 2 4″ x 4″ x 88.5″
Post Cap 2 4″ x 4″
Top Rail 1 2″ x 3.5″ x 64.5″
Mid Rail 1 1.5″ x 5.5″ x 64.5″
Bottom Rail 1 1.5″ x 5.5″ x 64.5″
Metal 1 1.25″ x 1.75″ x 64″
U-Channel 2 1.25″ x 1.5″ x 61″
End Caps 2 0.875″ x 1.5″ x 9″
Lattice 1 11.75″ x 56.375″
Cross Brace 1 Cross Brace
Pickets 5 0.875″ x 11.3″ x 64.25″
Vinyl Fence Glue 1 N/A
Cross Brace Screws and Caps 1 N/A
CAD Diagram
